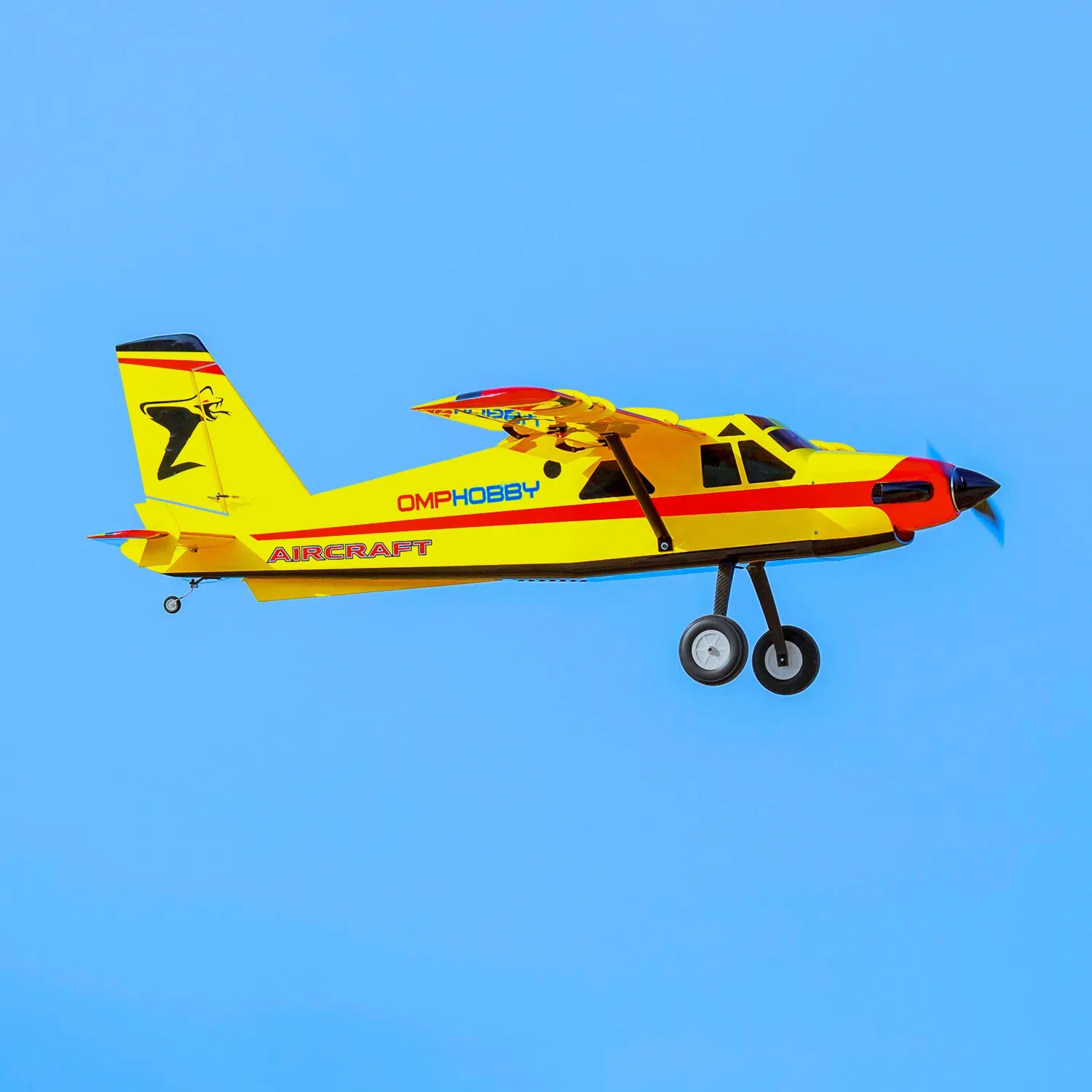

• OMPHobby 65”Bushmaster this aircraft faithfully replicates the true designs of the real-life aircraft, the head of the aircraft is reinforced with composite splints, the fuselage uses carbon fiber beams, an easy-to-install Horizontal Stabilizer Elevator, and an integrated Elevator, there are also pontoon installation positions, and aluminum alloy Wing Struts.
  • The aircraft is made of high-quality materials such as balsa wood, composite material, aluminum alloy, carbon fiber, and covering film,it is light, strong, and exquisitely beautiful.



Parameter Specification

WingSpan: 1660mm(66in)

Full Length: 1300mm(52in)

Flight Weight: 2.3-2.6KG

Wing Area: 34.2d

Wing Load: 67.25-76g/d

Wing Angle of Incidence: 0.5°

Motor Thrust Angles: Down 0°& Right 2.5°

Pack Dimension: 133*44*16 (L*H*W)cm

Gross Weight: 5.16KG





The Center of Gravity (CG)

Approx. 58-65mm (measured from wing leading edge at root)





Power System

Motor: Sunnysky 3520

ESC: Sunnysky 60-80A

Propeller: Eolo 14x7E

 Lipos: 6S 2200-3300mah/ 4S 2600-4000mah

Servo: SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)





Servo

OMPHobby SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)

Cord/lead: 600mm *1, 220mm*3, 450mm*2

Servo Arm: 2.5" Servo Arm





Recommended Settings of Dual Rates and Exponential of Control Surfaces

Aileron:  Low rate 15 deg.  30% expo

 High rate 38 deg.  45% expo

Elevator:  Low rate 15 deg.  30% expo

                  High rate 45 deg.  45%expo

Rudder:  Low rate 15 deg.  30% expo

  High rate 48 deg.  50% expo

SKU OMPBUSHMASTERRY
Type HOBBIES-R/C PLANES
