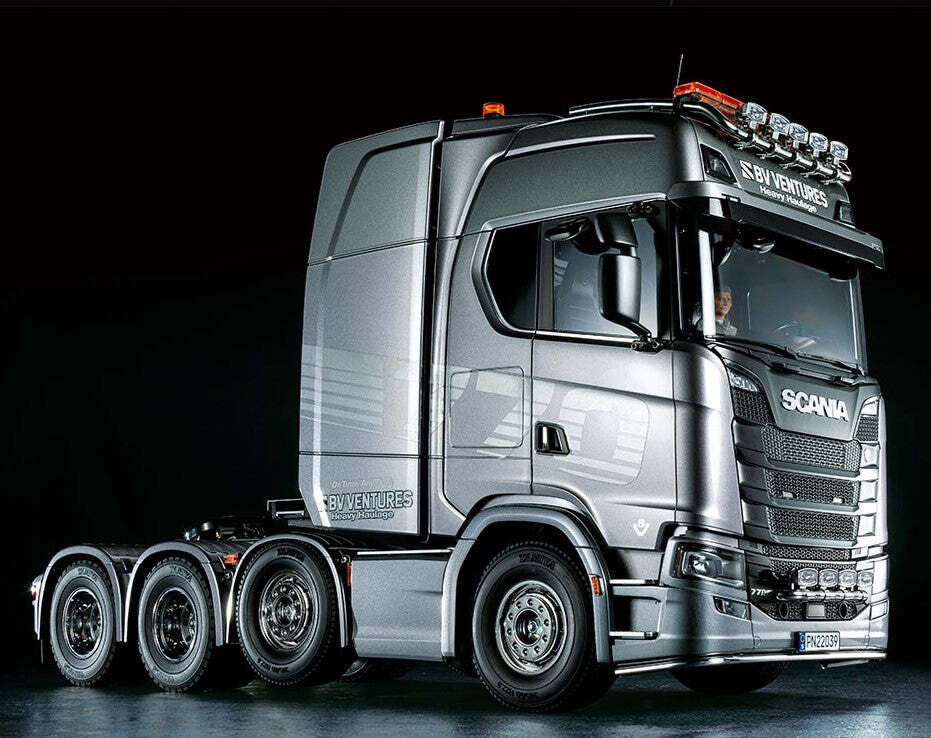

TAMIYA 56371 SCANIA 770S8X4/4 1/14 SCALE RC TRUCK ASSEMBLY KIT
SKU code: 4950344563715
Scania, a Swedish company known as a heavy-duty truck manufacturer. The highest grade of the new generation model announced by the company in 2016 is the S series. Above all, it is an electric RC car assembly kit for Scania 770 S 8x4/4, an 8-wheel trailer head with front 2-axle steering and rear 2-axle drive, equipped with a V8 turbo diesel engine that boasts 770 horsepower, which was added in 2020. . Using precision molds, the high roof specification is modeled as it is on the actual vehicle. In addition to the realistic interior with a round-shaped dashboard that surrounds the driver, custom parts that are popular in Europe have also been reproduced. The chassis is a ladder frame using aluminum channel material. The two front axles are steered by a single servo, and motor power is transmitted to the rear wheels via a 3-speed transmission. In addition, the second axis is equipped with a "lift axle" that lifts the axle. Wheels can be raised and lowered manually.
Length 610mm, Width 196mm, Height 320mm, Weight = approx. 4.2kg (excluding options) ●Wheelbase = 183 + 109 + 103mm ●Tread front/rear = 155/138 (double tire tread) mm ●Chassis shape = (aluminum) + Resin) Ladder frame ● Suspension = front and rear leaf rigid ● Caster angle/front/rear = 0°/0° ● Camber angle = front and rear = 0° ● Toe angle = front and rear = 0° ● Damper = aluminum dummy damper ● Drive System: Rear wheel 2-axis drive ●Transmission: Constant mesh type 3-speed transmission (transmission by radio control) ●Gear ratio: 1st gear 32.49:1, 2nd gear 17.66:1, 3rd gear 10.66:1 ●Differential gear system = 3 bevel differential ● Motor = TR Mighty Tune Motor (35T) Tire Width/Diameter = Front: 30mm/85mm, Rear: 22mm/84mm
[Items to be purchased separately]
RC mechanism used: "Fine Spec 2.4G 4-channel R/C system (transmitter/receiver set) recommended, or ATTACK 4YWD-2.4G transmitter/receiver set (made by Tamiya) with slide lever type trim. Self-neutral stick type 4-channel radio", 2 servos "Tamiya TP-S3003 or TSU-03 servo recommended", ESC "Tamiya TBLE-04S" or MFC recommended, Power supply for transmitter (4 AA batteries (book) ●Battery for driving, charger
[Optional parts that add even more realism]
Euro-style multifunction unit (MFC-03) (sold separately): Multifunction with built-in ESC that enables ultra-low speed driving as well as normal driving The control unit synchronizes realistic sounds with various actions unique to trucks, and creates a sense of presence by linking vehicle body vibrations. In particular, the sound source of the engine sound is the heartbeat of a real car equipped with a large displacement diesel engine. From idling to full throttle, the engine sound changes according to the speed. In addition, almost all sounds emitted by the actual vehicle, such as air dryer sound, air exhaust sound, and brake sound, are reproduced. In addition, stop lamps, turn signals, and back lamps can be turned on and off according to the operation, and the lighting of headlights, fog lamps, hazards, etc. can be controlled with a transmitter.
SKU | 4950344563715 |
Shipping Weight | 10.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.350m |
Shipping Length | 0.850m |
Shipping Cubic | 0.148750000m3 |
Type | HOBBIES-TAMIYA |
