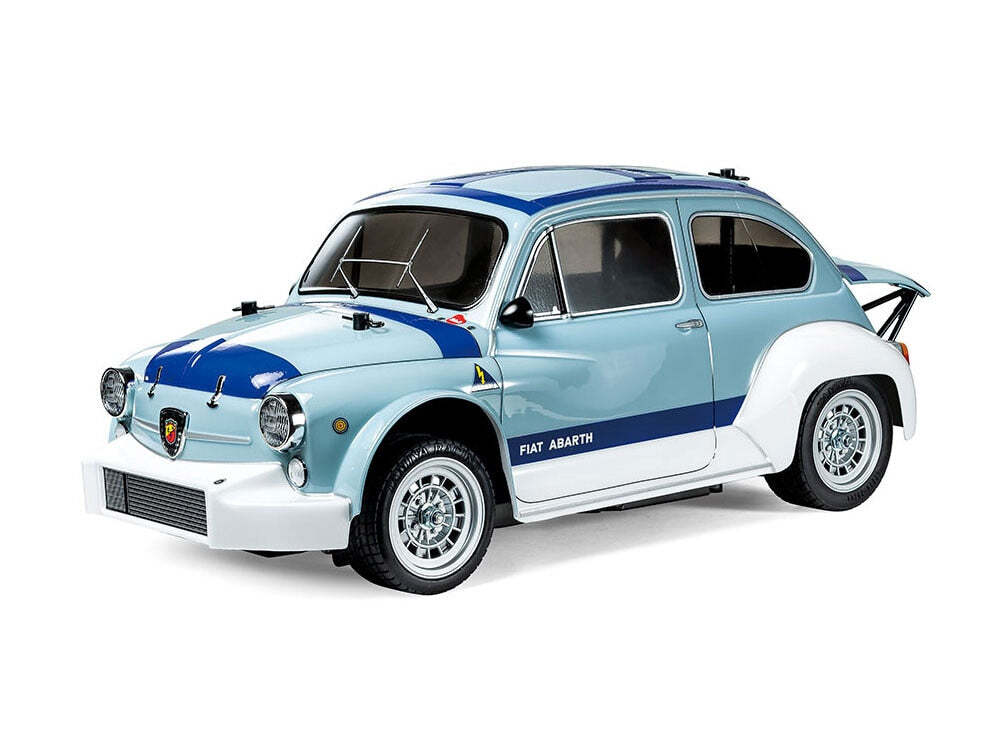

Length: 374mm. Image shows painted and assembled kit.

Great Things Come in Small Packages
The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

Specifications
★Length: 374mm, width: 168mm, height: 140mm ★Wheelbase: 210mm (Short) ★Tread: 140mm (front & rear) ★Tire width/diameter: 25/55mm (front), 25/59mm (rear) ★Bathtub type chassis ★Midship motor, rear-wheel drive ★4-bevel differential gear ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Friction dampers ★Gear ratio = 5.83:1 (using kit 29T pinion) ★Type 540 motor ★Electronic speed controller (ESC) is sold separately.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
