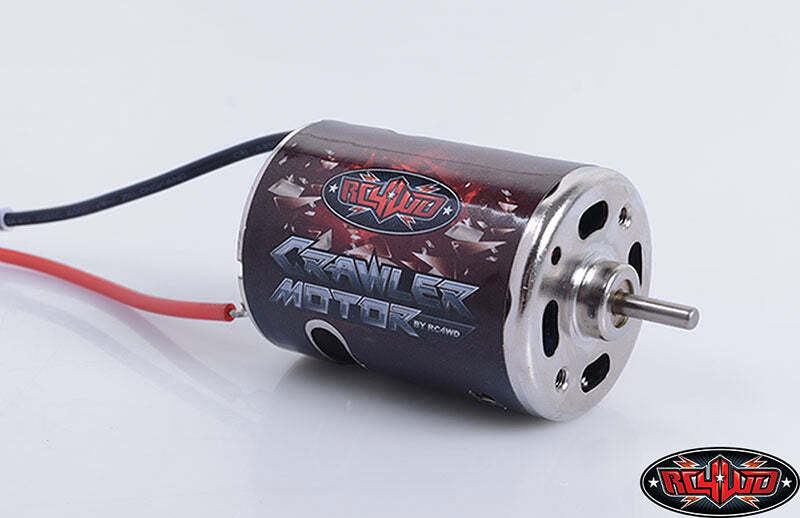

Specifications: Custom Made 540 Steel Case Chrome Plated Case Build in Capacitor for Minimizing Glitch High Torque Magnet and Rotor Small Footprint (50mm long) Tuned for Rock Climbing and Scale Driving Polished Bushings Body OD: 1.39in / 35.5mm Length: 1.96in / 50mm Output Shaft Length: 0.43in / 11mm Output Shaft OD: 0.12in / 3.1mm Min and Max Voltage Range: 2.4V-30V Weight: 5.57oz / 158g Performance Specs: (At No Load) RPM @ 7.2V : 15000 +10% , 1.2Amp Current (Rated load) RPM @ 7.2V : 13600 +10%, 5.02Amp Current Designed Operating Temperature Range: -10_C to +60_C Shaft end play: 0.1mm to 0.5mm Noise Level: < 78DB
SKU 639302605462
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.003000000m3
Type HOBBIES-MOTORS
