Overview:

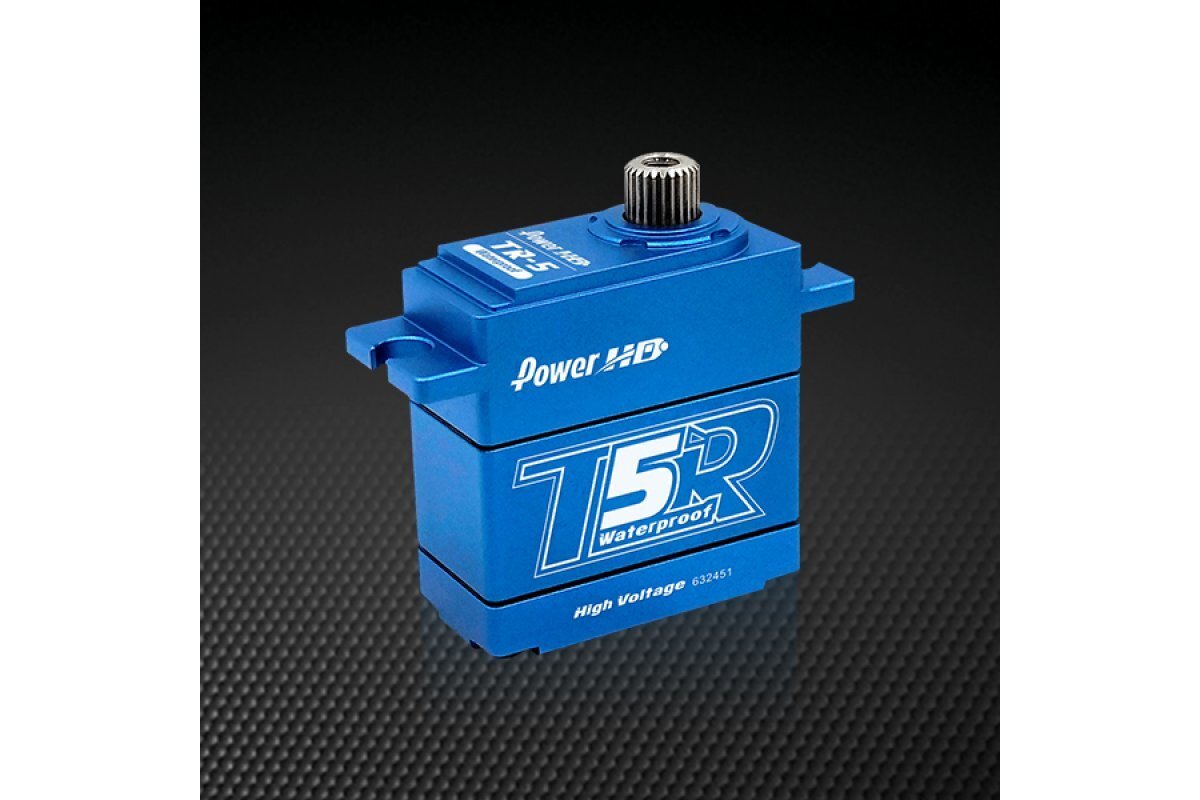

The Power HD waterproof TR-5 mini servo is perfectly compatible with TRAXXAS 1/16 series cars, also apply to small-scale model cars and boats which require waterproof functions.

With a 18CM signal wire come out from the servo bottom, the output spline of standard 25T which is compatible with the original TRAXXAS servo horn. Having compatibility with voltage 4.8V-8.4V, at 7.4V input the servo pulls up to 8kg-cm of torque at a speed of 0.07s.

Features:
  • Full CNC Machined Aluminium body
  • Power HD Waterproof design
  • compatible with 4.8-8.8v voltage
  • Anodised in Blue
  • Genuine Power HD product
Specifications:
  • Torque(4.8V): 3.8 kg-cm (52.8 oz/in)
  • Torque(6.0V): 6.0 kg-cm (83.3 oz/in)
  • Torque(7.4V): 8.0 kg-cm (111.1 oz/in)
  • Torque(8.4V): 8.8 kg-cm (122.2 oz/in)
  • Speed: 0.11 sec (4.8V) │ 0.09 sec (6.0V)
  • Speed: 0.07 sec (7.4V) │ 0.06 sec (8.4V)
  • Operating Voltage:4.8 ~ 8.4 DC Volts
  • Max Current:7.4V 2.0A
  • Gear Type:Metal
  • Spline:25T
  • Weight: 35.0 g (1.23 oz)
  • Size:29.5 x 14.0 x 31.4 mm (1.16 x 0.55 x 1.24")
SKU 6929138005050
Shipping Weight 0.4000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.130m
Shipping Cubic 0.000650000m3
Type HOBBIES-SERVOS
