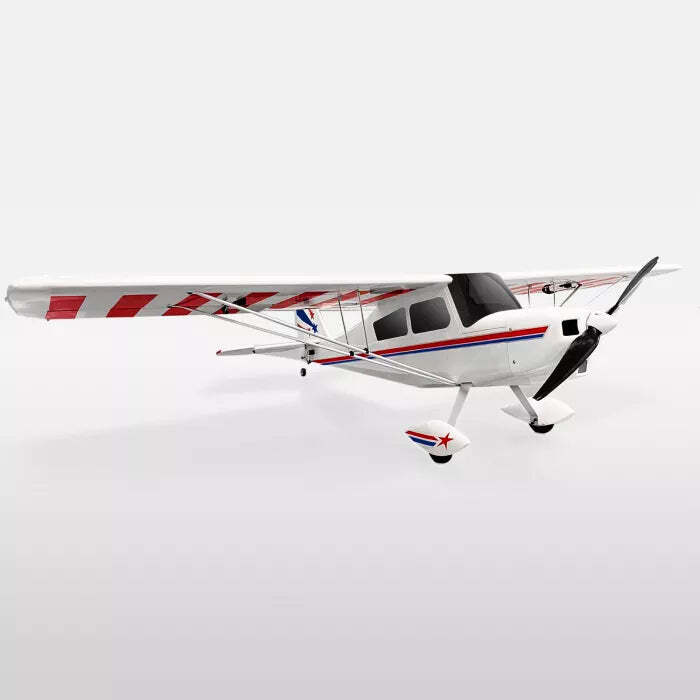

• OMPHobby Super Decathlon has a 55 inch wingspan, this model is an accurate scale of the decathlon including the wire supports for the tail and main wing. The decal and build quality of this model is of the highest quality. This model is also built with a balsa Kevlar laminate increasing the strength and rigidity of this incredible model.
  • All equipment of the PNP aircraft is pre-installed, which simplifies the assembly steps, so that pilots can complete the assembly in the shortest time to enjoy the fun of flying.
  • The PNP version driven by a Sunnysky 2820 920KV motor, powered by a Sunnysky 40A ESC. The ESC can manage up to a 4s battery. The power plant drives a Eolo 13x7'' propeller recommended for a 4s battery option.



Parameter Specification

WingSpan: 1400mm(55in)

Full Length: 1020mm(40in)

Flight Weight: 1.55kg

Wing Area: 34.67d㎡

Wing Load: 44.7g/d㎡

Wing Angle of Incidence: 1.5°

Motor Thrust Angles: Down2.5°&Right 4°

Pack Dimension: 107*32*25 (L*H*W)cm

Gross Weight: 7.35KG





The Center of Gravity (CG)

Approx. 70-75mm (measured from wing leading edge at root)





Power System

Motor: Sunnysky 2820

ESC: Sunnysky 40A

Propeller: Eolo 13x7E/12x6.5E

Lipo battery:3S/4S 2200-2600mah





Servo

OMPHOBBY SG5 17g *4 : (Aileron*2,Elevator*1, Rudder*1)

Cord/lead: 600mm*4

Servo Arm: 17g, 0.9"plastic servo arm





Recommended Settings of Dual Rates and Exponential of Control Surfaces

Aileron:  Low rate 60 deg.  50% expo

 High rate 100 deg.  40% expo

Elevator:  Low rate 50 deg.  40% expo

                  High rate 100 deg.  30%expo

Rudder:  Low rate 60 deg.  40% expo

  High rate 100 deg.  30% expo
