• OMPHobby 49” Challenger is a sport RC model airplane built in the traditional way: balsa and film cover. The airplane features light yet strong structure, low wing load, and abundant power, making the airplane easy to fly and capable of a lot of advanced aerobatics, such as all P3A and a few 3D maneuvers. This airplane performs very well in either low or high speed, with great authenticity and precision in response to radio stick movements, ideal for pilots who graduated from trainer airplanes to the next level of skills.

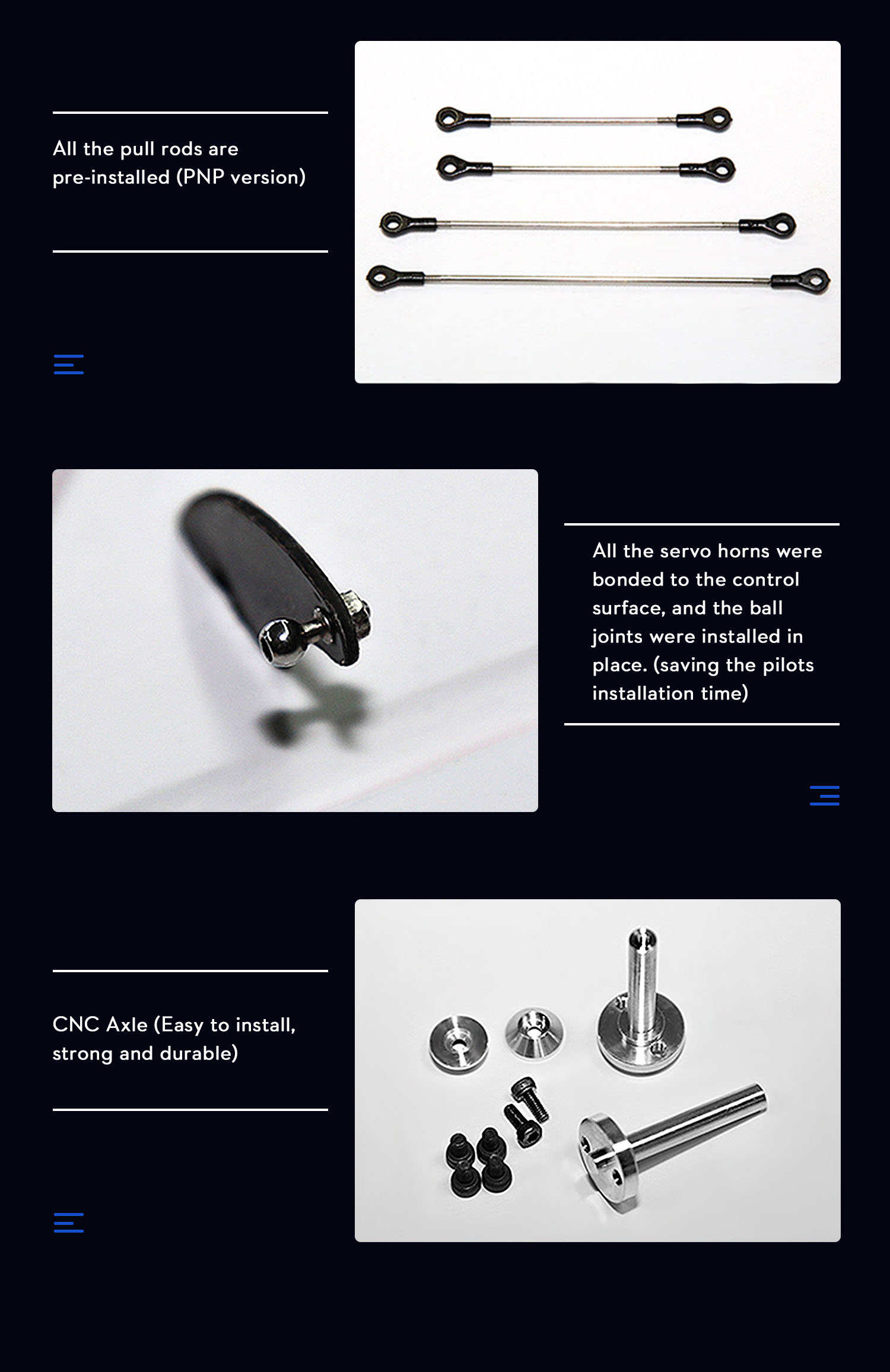

    • The optional 49” Challenger PNP version is an almost completed kit in factory. Motor, ESC, servos, Ailerons, elevator, are all installed. Landing gear is preassembled. Propeller is included in the kit. It takes no more than an hour to put the kit together and ready for the sky.


    Parameter Specification

    Wing Span: 1250mm(49in)

    Full Length: 1006mm(39.6in)

    Flight Weight: 1170g

    Wing Area: 27.37d㎡

    Wing Load: 41.8~55.7g/d㎡

    Wing Angle of Incidence: 2°

    Motor Thrust Angles: Down 2°& Right 4°

    Pack Dimension: 104*30*16 (L*H*W)cm

    Gross Weight: 5.3KG



    The Center of Gravity (CG)

    Approx.62mm (measured from wing leading edge at root)



    Power System

    Motor: Sunnysky 2820

    ESC: 40A

    Propeller: Eolo 13x7E/12x6.5E

    Lipo battery:3S/4S 2200-2600mah



    Servo

    OMPHOBBY SG5 17g *4 (Aileron*2,Elevator*1, Rudder*1)

    Cord/lead: 300mm*2, 600mm*6

    Servo Arm: 17g, 0.9"plastic servo arm



    Recommended Settings of Dual Rates and Exponential of Control Surfaces

    Aileron:  Low rate 60 deg. 40% expo

                    High rate 100 deg. 40% expo

    Elevator: Low rate 50 deg. 30% expo

                     High rate 100 deg. 30%expo

    Rudder: Low rate 60 deg. 30% expo

                    High rate 100 deg. 30% expo



SKU OMPCHALLENGERRED
Brand OMPHOBBY
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 1.040m
