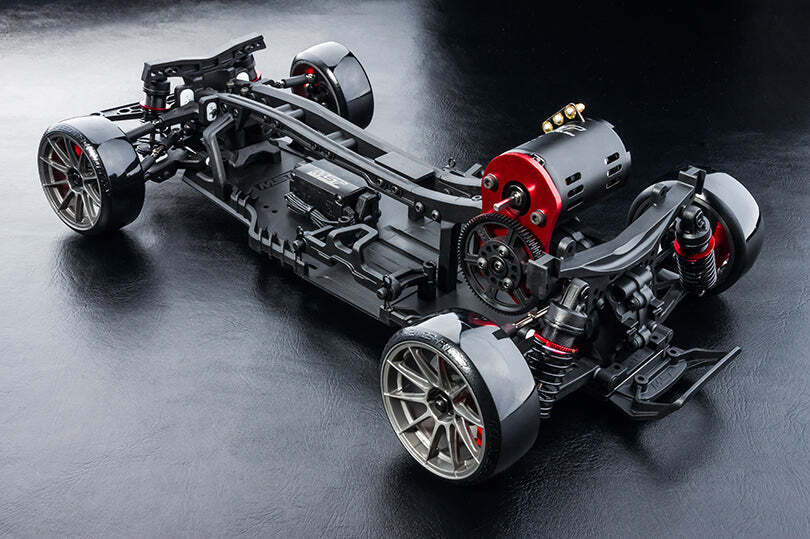

SPECIFICATION WHEELBASE : 257mm WIDTH : 190mm DRIVE MODE : RWD CASTER: adjustable 6 / 8 / 10 / 12 degree CAMBER: adjustable 0 to -12 degree FULL BALL BEARING HYDRAULIC DAMPER SET FEATURES

■ Two install methods of motor mount – upper or lower gravity deployment

■ Two install methods of servo – vertical or lateral deployment

■ Plastic high rigidity constructions

■ New designed front great-steering suspenstion system

■ The adjustable steering system for two-step Ackermann changes

■ 6 degrees KPI steering upright, and -0.5 towing distance axle design

■ New designed inside rods fulcrum mount at the front upper arm is adjustable for 10-step highness and both sides positions

■ New full-sealed dustproof gear box is transmitted by bevel gears

■ Standard ball differential

■ 5 changeable second-deceleration-ratio gear sets of 1.89-3.82 (standard 3.08)

■ The fulcrum at the rear suspension upper rod is 5-step adjustable on both sides. The outer fulcrum is 4-step adjustable on both sides

■ Steel CVD axle of rear transmission system

■ Suitable for long and short battery

■ Full turnbuckles

■ Full great smooth metal ball connectors

■ Standard realistic caliper and disc shape brake set
