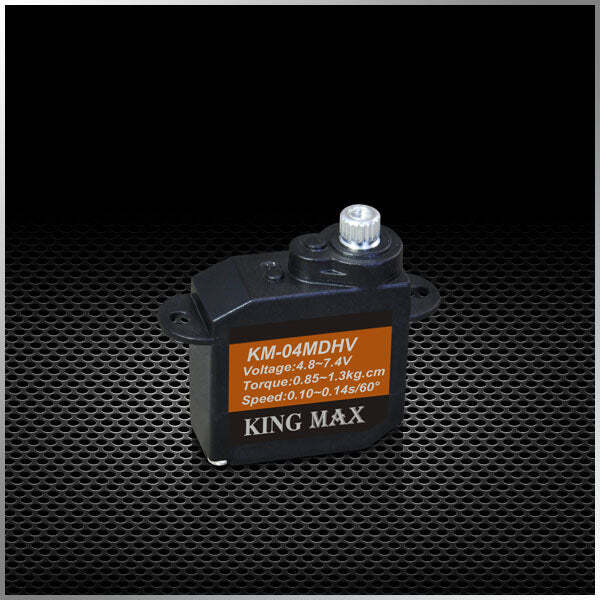

-The first practical micro servo
--High-precision metal gears for smooth action and durability
--Tiny gear clearance
--Good for CCPM
--Coreless motor
--Mature circuit design scheme,quality motors and electronic components makes the servo stable,accurate and reliable


SPECIFICATIONS:
Control System:  +Pulse Width Control
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8V): 0.14sec/60 degrees at no load
Operating Speed (6.0V): 0.12sec/60 degrees at no load
Stall Torque (4.8V): 0.85kg.cm (11.80 oz/in)
Stall Torque (6.0V): 1.30kg.cm (18.05 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 19.8x8.3x23 mm /0.77x0.32x0.9 in
Weight: 5.7g (0.2oz)
Connector Wire Length: JR150mm (5.85in)

SKU KM-04MDHV
Type HOBBIES-SERVOS
