IMPROVED Mid 2023

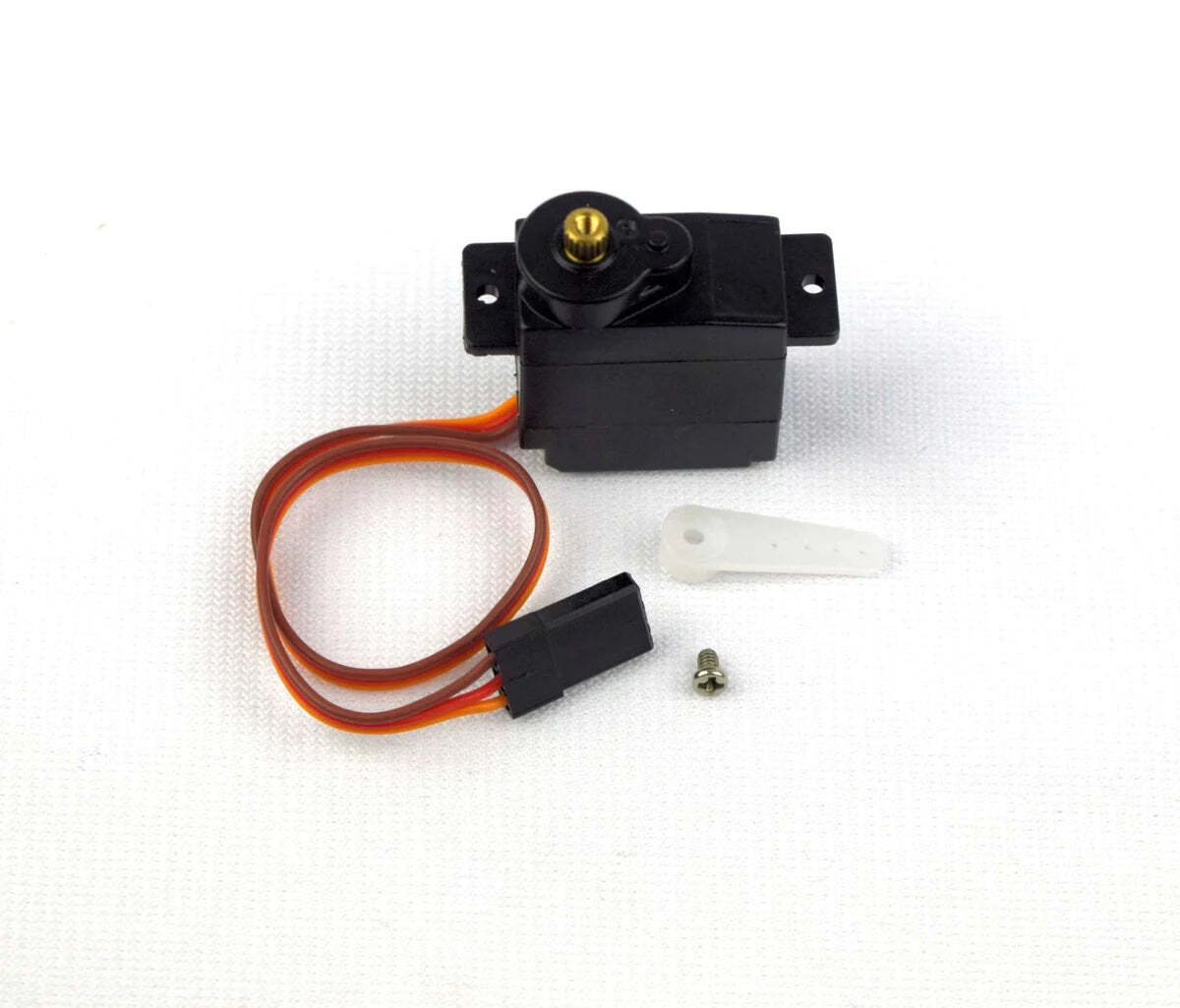

Stock Replacement servo for the DF95 & DF65

Suitable  for all DF boat versions!

IMPROVED 4.8 & 6.0 Low Voltage / Metal Gear DIGITAL Rudder Servo

*IMPORTANT CHANGE FOR MID 2023!!!
THE SERVO HORN FOR THE NEW STOCK SERVO IS LARGER THEN THE PREVIOUS VERSIONS AND SITS HIGHER IN THE TRAY!!!
HIS ALSO REQUIRES THAT TRAYS IN BOATS PURCHASED IN 2022 OR THROUGH APRIL 2023 HAVE A SECTION FILED OUT TO ALLOW THE ARM TO PASS FREELY TO THE COCKPIT IN BOTH DF95 & DF65

All current v2 DF95s & v7 DF65s have the tray already modified and the new arm installed


This servo can be used with 2 cell LiFe 6.6v batteries
but not higher voltage LiPos
*Restricted Class Compliant

FEATURES:
-- High-precision metal gears for smooth action and durability
-- High quality brushed motor

SPECIFICATIONS:
Dead band: 4μs
Control System:  +Pulse Width Control
Working frequency: 1520μs / 330hz
Operating Voltage:  DC4.8~6.0 V
Operating Temperature Range: -10 to + 60 degrees
Weight: 9 g
Connector Wire Length: JR 180 mm (7.09in)

SKU 6949762294040
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Type HOBBIES-R/C BOATS
