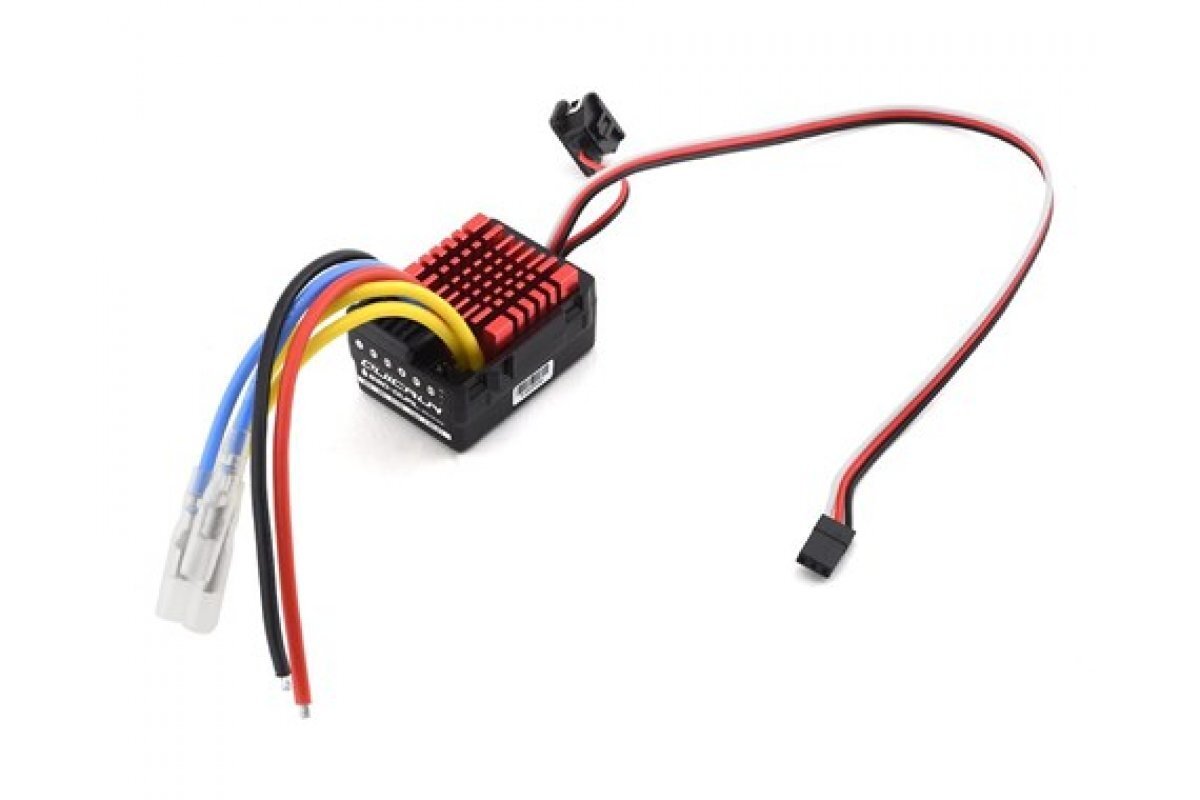

The QUICRUN 880 Dual ESC is a durable, highly reliable waterproof electronic speed controller that has been designed for twin brushed motors in 1/10 and 1/8th scale vehicles. The HobbyWing patented copper heat conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heatsink for faster and greater heat dissipation.

This ESC is packed full of other features including a stable switch mode BEC, separate programming port, tunable drag brake, adjustable PWM frequency combined with freewheeling technology, 9 levels of accelaration and punch plus multiple protections and more. The waterproof/dust proof design allows the QUICRUN 880 to be used in all weather conditions without any issues.

Features:
• ESC has twin outputs for dual motor use
• Fully water and dust proof
• Stable switch-mode BEC with 4A constant current
• Thermal protection
• Throttle signal loss protection
• Low voltage cut-off protection
• Separate programming port to connect to LED program card

Available Programming Options:
• Running mode
• Cell type
• Cut-off voltage
• Initial start force
• Max forward force
• Max reverse force
• Max brake force
• Initial brake force
• Drag brake
• Drag brake rate
• neutral range
• Start mode/punch
• PWM frequency
• Freewheeling

Specs:
Type:HobbyWing QUICRUN 880 80/400A Dual 1/10-1/8th Scale Car/Buggy Brushed Speed Controller
Continuous/Peak Current: 80A/400A
Motor Type: Brushed 540/550/775 size motors
Application: 1/10-1/8th scale twin brushed motor vehicles
Input Power: 2~4S Lipoly/5~12 Nimh cells
Motor Limit: 12T with 2S or 6 Nimh cells, 18T with 3S or 9 Nimh cells, 24T with 4S or 12 Nimh cells
BEC Output: 6V@4A (switch mode)
Input Connectors: None
Output Connectors: 4mm female bullet connectors
Programming: Via separate port and LED program card (sold separately)
Dimensions: 45.9x34.7x26.5mm
Weight: 75g
