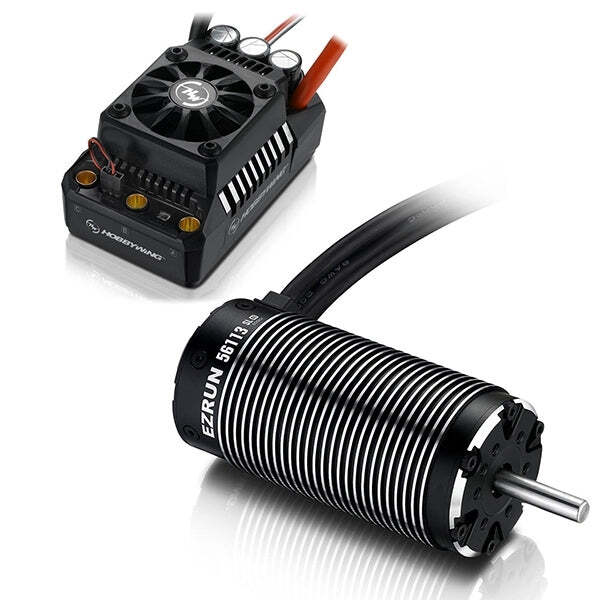

Hobbywing 38010600 EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo w/56113SL (800kV) Great choice for electric Baja 5B EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo includes the 56113SL 1/5 scale, 800kV motor and is a great option for high-end, aggressively powered, large scale 8S builds. Specifications: Motor: Model: 56113-800KV Pole: 4 KV (No-load): 800KV Resistance: 0.00049 Ω Current (No-load): 3.2 A Max. Output Power: 5800 W Current at the point of M.O.P: 200 A Motor Diameter: 56mm Motor Length: 113mm Shaft Diameter: 8.0mm Shaft Length: 31.0mm LiPo Cells: 3-8 Weight: 1210g (42.68oz) Application: 1/5th RC Vehicles, Truck/Dragster ESC: Continuous Current: 200A Peak Current: 1,300A Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode) Applications: 1/5th Touring Car, Buggy, Truggy and Truck Motor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor) LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC) Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller) Size (LxWxH): 93.35x58.12x47.81mm Weight: 342g Programming Port: FAN /PRG Port
SKU 6938994407489
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.280m
Shipping Cubic 0.010500000m3
Type HOBBIES-PARTS
