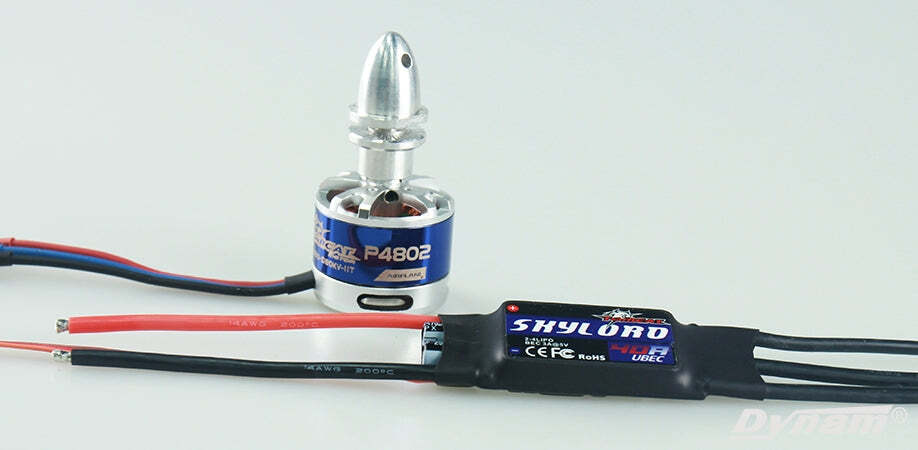

This combo set include 1.skylord 40 ESC(with 5V/3A BEC)x1 2.Tomcat motor P4802x1 P4802: Type: TC-P-3510-KV1080 (P4802) KV(rpms per volt):1080 No load current: 1.1 A @10V Resistance:0.06 ohms Watts:up to 380 Continuous Current:25A Max Burst Current:30A,10seconds Cells:3–4 S Li-Po Recommended Props:10x7 to 12x6 Slots,Poles:12,14 Diameter: 35 mm Shaft: Diameter 4.0 mm Weight:87 g Brushless ESC:40A Skylord 50A ESC Product Introductions Features - All the electronic components in ESCs are genuine original, to ensure the ESCs working with high quality and reliability. - Microprocessor in the ESC is powered by separate voltage regulator IC, with better anti-jamming capability, greatly reducing the possibility of out of control. - The ESCs have three start modes: Normal, Soft, and Super-soft, it can be used for both fixed-wing aircraft and helicopter. - The ESCs have full protection features such as low voltage protection, over-heat protection, over-load protection, and throttle signal lost protection, it can effectively extend the service life of the ESCs. - The ESCs support selectable timing, compatible with aircraft motor and disc-type motor. - The throttle range can be configured, fully compatible with the available transmitters. The ESCs have smooth and accurate speed control, and excellent throttle linearity. - The highest motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000RPM (12 poles). - A programming card with a very small size and intuitive interface can be purchased additionally for easily programming the ESC (For details, please see the user manual of program card). Protection Functions - Start protection: If the motor fails to start up within 2 seconds while the throttle stick moving up, the ESC will cut off the output power and then try to restart the motor after 2 seconds. Such a situation happens in the following cases: The connection between the ESC and the motor is loose. The propeller is blocked by other objects. The gearbox is damaged. - Over-heat protection: When the temperature of the ESC is over about 110 Celsius degrees, the ESC will gradually reduce the output power. To ensure that the motor can still get power to avoid a crash, the ESC will not shut down all the output power, maximum reducing to 40% of the full power. After the temperature drops, the ESC will gradually recover to maximum power. - Low voltage protection: If the battery voltage is lower than the cut off threshold, the ESC will reduce the output power to zero according to the pre-set cut off type. - Throttle signal loss protection: The ESC will gradually reduce the output power if the throttle signal is lost for 1 second, further loss for 2 seconds will cause the output cut off. If the throttle signal is recovered within 2 seconds, the throttle control will be recovered immediately. - Over-load protection: If the load of motor increases suddenly, the ESC will cut off the output power and then try to restart after 2 seconds.
SKU TMC008
Brand DYNAM
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Type HOBBIES-MOTORS
