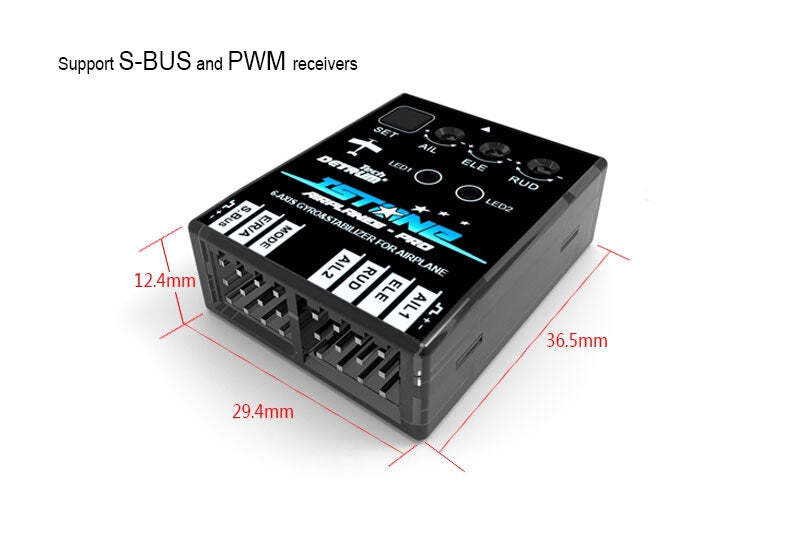

Introduction ISTONE-A ACRO is a 6-axis Gyro & Stabilizer for airplane, suitable for normal wing, fly-wing, and V-tail airplanes. It is used to connect with the receiver to control the flight, supports Gyro Off, Normal, Aerobatic, and Auto-balance (Safe) modes, compatible with S.BUS and PWM receivers. You can set the programmable items via SET button and LEDs. Compared to ISTONE-A ACRO, ISTONE-A PRO adds an Auto-balance (Safe) Mode. When switch the airplane to Safe Mode from any other modes in an emergency, the airplane will recover to the level flight automatically, which it is known as one-click rescue. This mode is suitable for the new beginners or the FPV (First Person View) applications. Features - 32-bit high-performance ARM MCU, 6-axis sensor chipset - Original attitude stabilization algorithm and control algorithm - Support normal wing, fly wing, and V-tail airplanes - Support mode switch via MODE channel, can switch between different modes - Four flight modes: Gyro Off Mode, Normal Mode, Aerobatic Mode, and Auto-balance (Safe) Mode - rogram via SET button and LEDs, adjust the gain for aileron, elevator, and rudder via three potentiometers - Support S.BUS and PWM receivers - Mini dimension, supporting different mounting directions (face up, down, left, and right) - You can switch to Auto-balance (Safe) Mode when the aircraft flying unstable or you cannot control very well Specifications Main Controller: 32-bit MCU Sensor: 6-axis gyro Gyro Scale Range: -2000dps ~ +2000dps Accelerometer Scale Range: -4g ~ +4g Input Signal: PWM, S.BUS Output Signal: PWM (71.4Hz) Input Voltage: 4.8V ~ 7.4V Operating Temp: -20℃ ~ 70℃ Size: 36.5mm*29.4mm*12.4mm Weight: 11g
SKU DTMG002
Brand DYNAM
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000400000m3
Type HOBBIES-RECEIVERS
